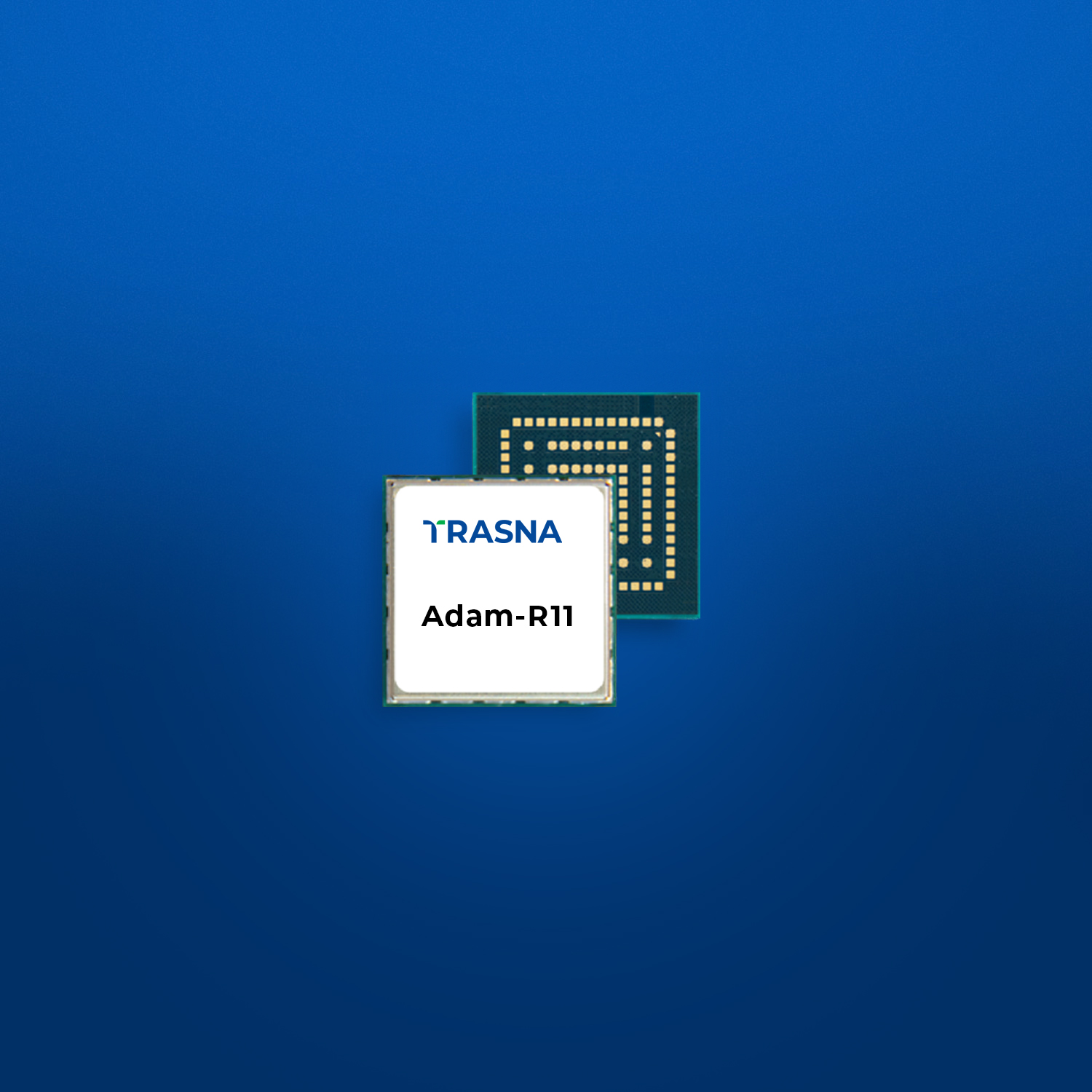

Adam-R11

Versatile LTE Cat 1bis connectivity in a space-saving, power-efficient design with hybrid positioning and optional eSIM for scalable global IoT deployments.

Adam-R11 overview

Adam-R11 is a compact, cost-optimised LTE Cat 1bis module designed for IoT applications requiring medium-speed data, global deployment, and efficient power usage. With optional embedded eSIM, integrated Wi-Fi scanning for hybrid positioning, and global or regional variants, it simplifies logistics and supports a wide range of use cases in a space-saving 18 x 18 mm form factor. Ideal for applications such as asset tracking, fleet management, healthcare, and wearables.

Benefits

Flexible deployment

Global and regional variants with key certifications reduce regulatory and supply chain complexity.

Low total cost of ownership

Designed for applications that don’t require US MNO approvals or permanent US roaming.

Integrated eSIM option

Embedded eSIM with multi-IMSI (global variant) enables seamless, out-of-the-box connectivity.

Hybrid positioning

Delivers location data via embedded Wi-Fi scanning for indoor/outdoor tracking.

Power efficiency

eDRX, PSM, and deep sleep modes extend battery life for long-lasting operation.

Highlights

Compact and compatible
18 x 18 x 2.2 mm footprint with LGA design, compatible with LEXI form factor for scalable product development.
LTE Cat 1bis connectivity
Downlink speeds up to 10 Mbps and uplink up to 5 Mbps across a wide range of LTE FDD and TDD bands, including Bands 1, 3, 5, 7, 8, 20, 28, and more.
Security and reliability
Secure boot, TLS 1.3/DTLS, firmware updates via UART, USB, or FOTA, and long-term durability in industrial environments.
Protocol-rich software stack
Supports MQTT, HTTP, FTP, TCP/IP, UDP, IPv4/IPv6, and Bearer Independent Protocol. GSMA SGP.32 (IoT RSP) compliant.
Global and regional SKUs
Certified for global, EMEA, APAC, and Brazil deployments with key approvals including FCC, ISED, RED, NCC, and Anatel.
Integrated hybrid positioning
Supports Wi-Fi scanning for indoor/outdoor location tracking and optional CellLocate integration.
Flexible interface support
Equipped with dual UART, USB, 10 GPIOs, and supports SIMs at 1.8V/3.0V with toolkit support.

Highlights

01:

18 x 18 x 2.2 mm footprint with LGA design, compatible with LEXI form factor for scalable product development.

03:

Downlink speeds up to 10 Mbps and uplink up to 5 Mbps across a wide range of LTE FDD and TDD bands, including Bands 1, 3, 5, 7, 8, 20, 28, and more.

05:

Secure boot, TLS 1.3/DTLS, firmware updates via UART, USB, or FOTA, and long-term durability in industrial environments.

02:

Certified for global, EMEA, APAC, and Brazil deployments with key approvals including FCC, ISED, RED, NCC, and Anatel.

04:

Supports Wi-Fi scanning for indoor/outdoor location tracking and optional CellLocate integration.

06:

Equipped with dual UART, USB, 10 GPIOs, and supports SIMs at 1.8V/3.0V with toolkit support.

Highlights

01:

18 x 18 x 2.2 mm footprint with LGA design, compatible with LEXI form factor for scalable product development.

02:

Certified for global, EMEA, APAC, and Brazil deployments with key approvals including FCC, ISED, RED, NCC, and Anatel.

03:

Downlink speeds up to 10 Mbps and uplink up to 5 Mbps across a wide range of LTE FDD and TDD bands, including Bands 1, 3, 5, 7, 8, 20, 28, and more.

04:

Supports Wi-Fi scanning for indoor/outdoor location tracking and optional CellLocate integration.

05:

Secure boot, TLS 1.3/DTLS, firmware updates via UART, USB, or FOTA, and long-term durability in industrial environments.

06:

Equipped with dual UART, USB, 10 GPIOs, and supports SIMs at 1.8V/3.0V with toolkit support.

07:

Supports MQTT, HTTP, FTP, TCP/IP, UDP, IPv4/IPv6, and Bearer Independent Protocol. GSMA SGP.32 (IoT RSP) compliant.

08:

Benefits

Our partners

No items found.

Proven success

No items found.
No items found.
No items found.
No items found.

Use cases

  • Asset tracking and logistics
  • Fleet management and telematics
  • Health and wellness monitoring
  • Wearables and consumer IoT
  • Smart metering and infrastructure
  • Safety and emergency response devices

Key features

No items found.

Get everything you need to know

Access all the specs, features, and integration options — download Adam-R11 product materials.

Learn more

Costs

No items found.
No items found.

Build smarter IoT solutions

Discover the tools and insights to build secure, efficient IoT solutions by exploring our developer resources.

Developer resources

Upgrade with Adam-R11

The Adam-R11 series is engineered for scalable, cost-effective LTE Cat 1bis connectivity in a compact footprint. With hybrid location tracking, optional eSIM, and global-ready variants, it delivers reliable communication and simplified logistics ideal for powering your next-generation IoT deployments.

Explore how Adam-R11 can enhance your connectivity and access additional product materials or request an evaluation kit for proof-of-concept testing. Contact us to learn more.
